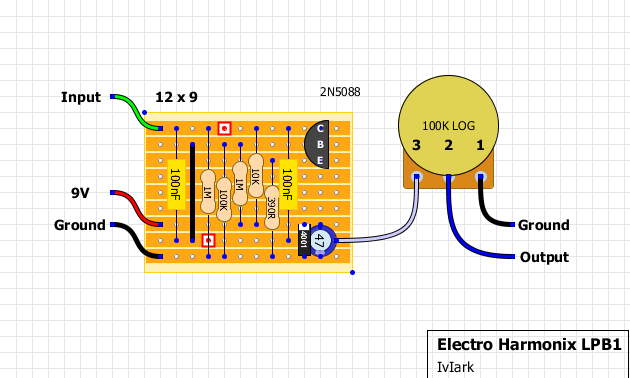

Electro-Harmonix LPB-1

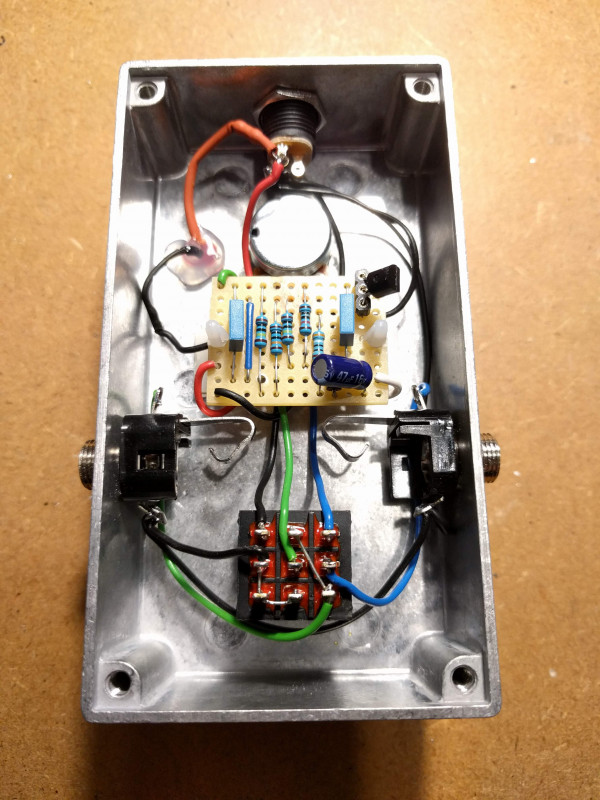

Small build, focused on the wiring. But found out that wiring the ground of the pot to the 3PDT didn't work, so I had to connect it to the DC connector afterwards. Also noticed that it's hard to get those cheap Chinese resistors with their flimsy leads neatly aligned. And I'm not satisfied with the overall layout, the pot could be positioned a bit higher. And then the LED, I need to work on wiring those properly.

The PCB raisers are nice but I had to be careful to not damage the vero board too much, next time I'll add two extra columns on both sides. I also like the Lumberg open jack connectors, bought those at Baco.
